PUBLIC ADDRESS (PA) MIXER AMPLIFIER

Model No: LXAC2504BTE

Professional 250W 4-zone PA mixer amplifier designed for reliable audio distribution in commercial and public address applications.
Supports Bluetooth, USB, SD card, and FM radio playback, providing multiple options for music and audio streaming.
Features 4 independent zone controls, multiple microphone and AUX inputs, plus VOX priority for clear voice announcements.
Equipped with an LCD display, IR remote control, bass/treble adjustment, and individual volume controls for convenient operation.
Built-in overload, short circuit, clip, and high-temperature protection ensures safe, stable, and long-lasting performance.

Technical Parameters

Specification	Details
Product Type	Public Address (PA) Commercial 4-Zone Mixer Power Amplifier, 19″ Rack Mount, 2U Height
Rated Output Power	250W with Heavy Pure Copper Transformer
Media Playback	Built-in MP3 Player via USB, SD Card, FM Tuner, and Bluetooth
Speaker Output	100V / 70V Constant Voltage, 4Ω / 8Ω / 16Ω Speaker Output
Zone Control	4 Independent Speaker Zones with Individual Volume Control
Microphone Input	MIC 1–3 via 6.35mm Jack, MIC 1 & MIC 2 Optional XLR Input (Rear Panel)
VOX Function	MIC 1 Supports VOX with Highest Input Priority
AUX Input / Output	2 × RCA AUX Inputs and 1 × RCA Output
Alarm Input	Siren Control Alarm Input with Highest Priority
Display	LCD Display for Audio Source Status

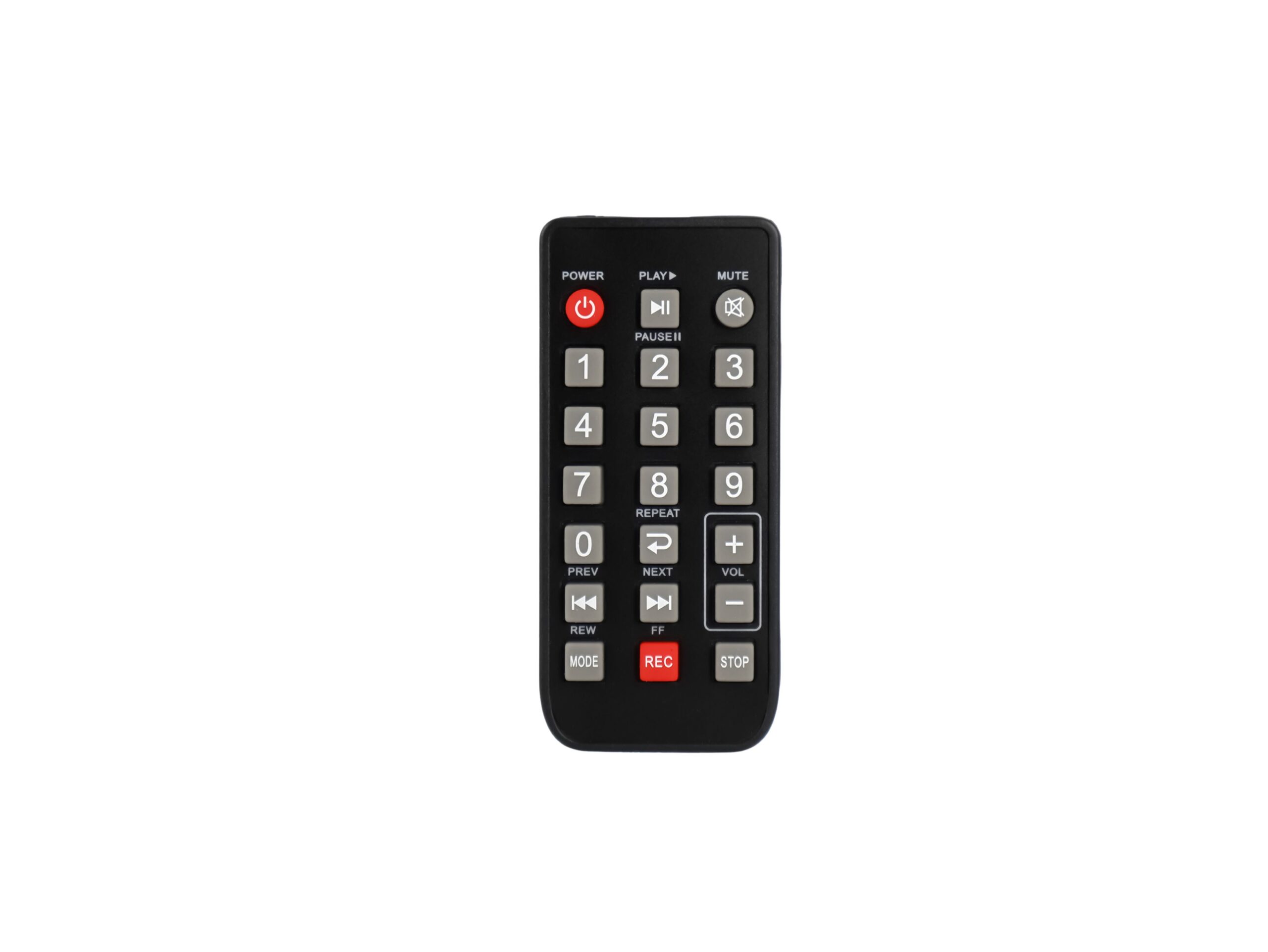

Remote Control	Infrared Remote Control for MP3 Player, FM Radio, and Bluetooth
Audio Controls	Volume Control for Zones 1–4, MIC 1–3, Echo, AUX 1–2, Media, Bass, Treble, and Master Volume
Status Indicators	LED Indicators for Signal, Protection, and Power
Power Supply	AC 220V–240V Wide Voltage Input
Protection	Overload, Short Circuit, Clip, and High Temperature Protection
