BATTERIES & ENERGY STORAGE, VRLA, Lead-Acid

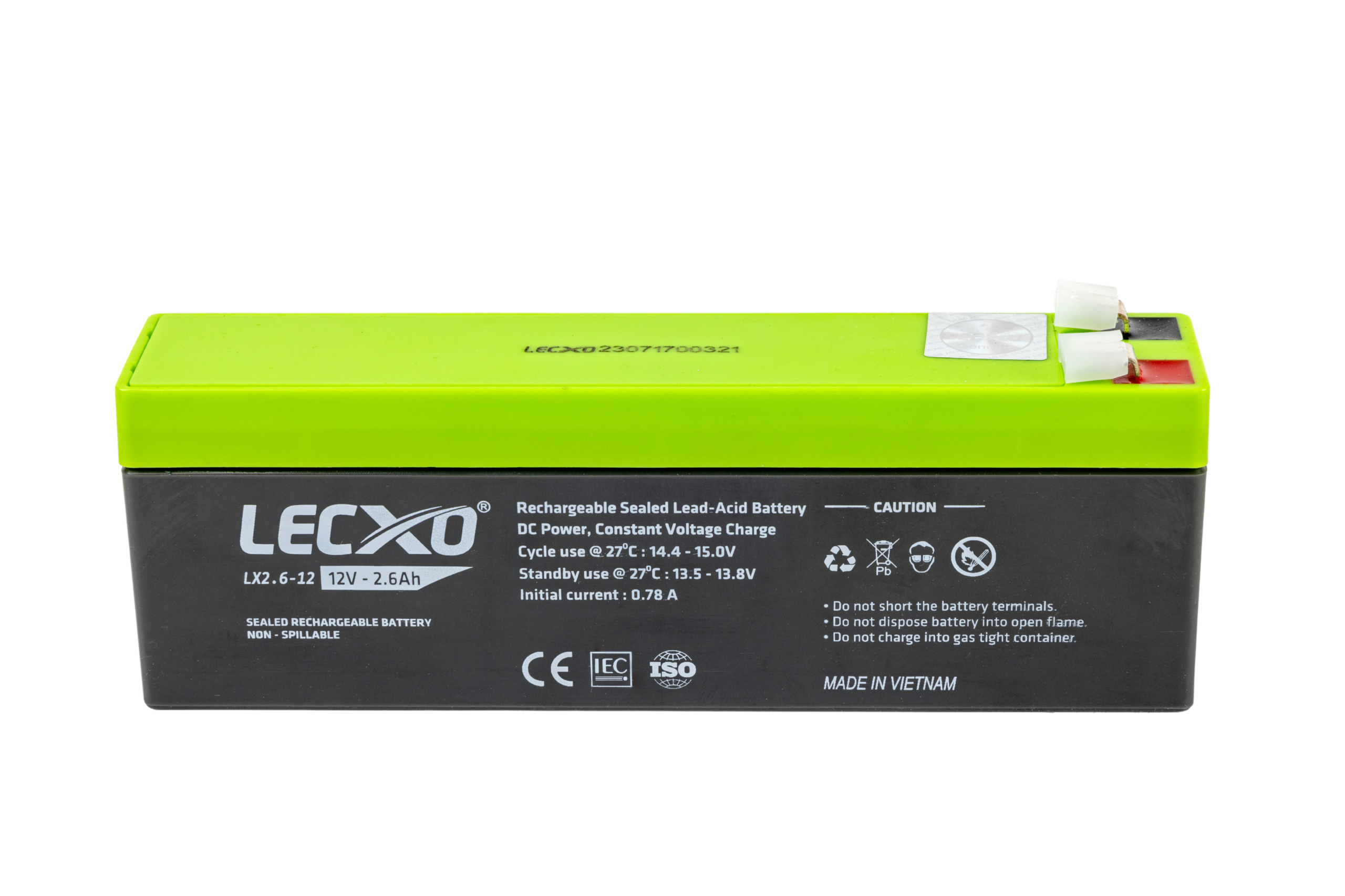

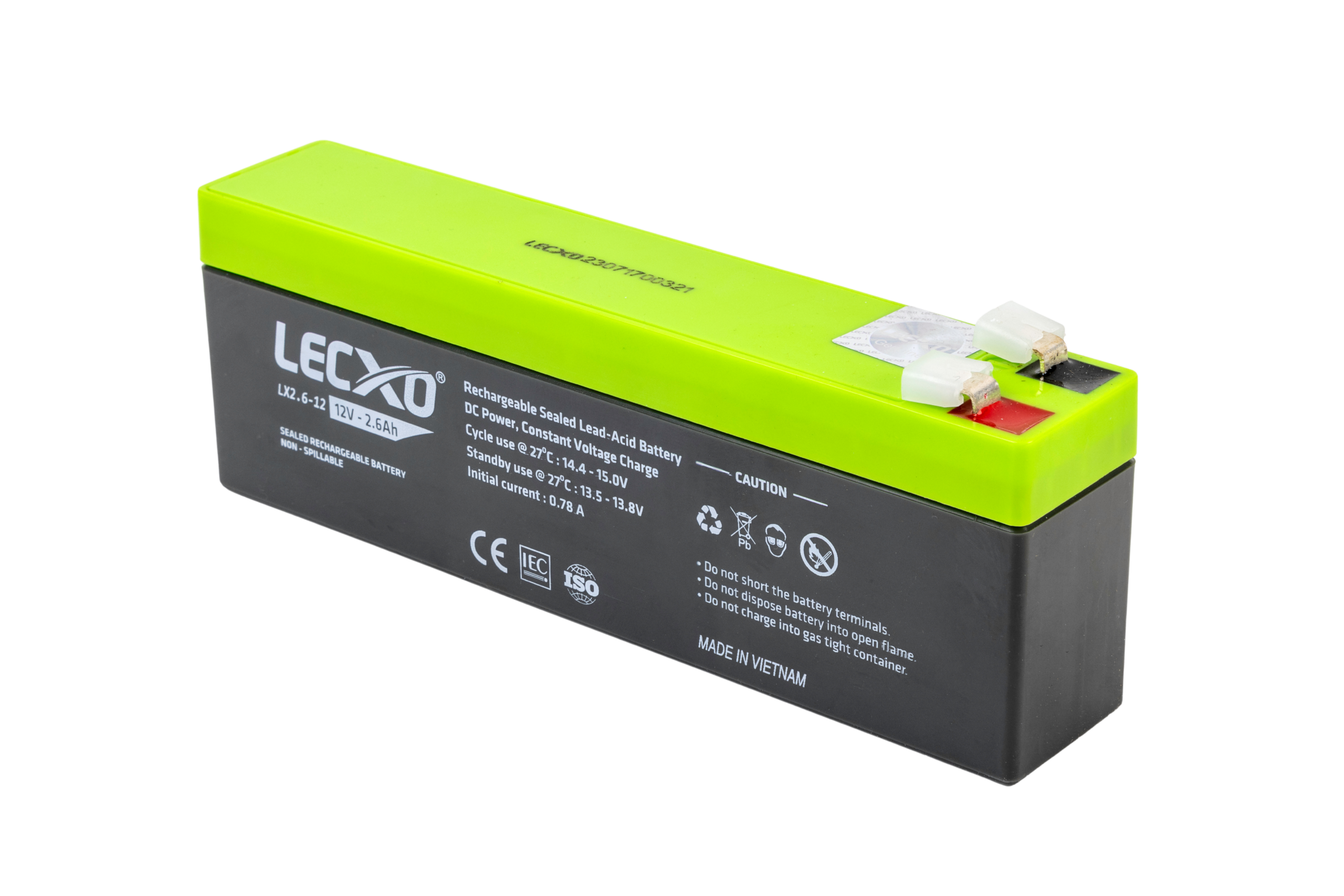

Rechargeable Sealed Lead Acid Battery
12V 2.6AH
Model No: LX2.6-12
- All Purpose
- Uninterruptible Power Supply (UPS)
- Electric Power System (EPS)
- Emergency Backup Power Supply
- Alarm and Security System
- Communication Power Supply
- DC Power Supply
- Auto Control System
| Specification | Details |
|---|---|
| Rated Voltage | 12V |
| Nominal Capacity | 2.6Ah (C₂₀, 1.75V/cell) |
| Dimensions | |
| Length | 178 ± 1 mm (7.00 inches) |
| Width | 34 ± 1 mm (1.38 inches) |
| Container Height | 60 ± 1 mm (2.36 inches) |
| Total Height (with Terminal) | 66 ± 1 mm (2.60 inches) |
| Approx Weight | 0.91 Kg (2.01 lbs) |
| Terminal | T1 |
| Container Material | ABS |
| Rated Capacity (25°C) | |
| 20hr Rate | 2.60Ah (0.130A, 1.75V/cell) |
| 10hr Rate | 2.46Ah (0.246A, 1.75V/cell) |
| 5hr Rate | 2.18Ah (0.436A, 1.75V/cell) |
| 3hr Rate | 1.91Ah (0.636A, 1.75V/cell) |
| 1hr Rate | 1.58Ah (1.58A, 1.60V/cell) |
| Max. Discharge Current | 39A (5s) |
| Internal Resistance (25°C) | Approx. 60 mΩ |
| Operating Temperature Range | |
| Discharge | -15°C to 50°C (5°F to 122°F) |
| Charge | -20°C to 40°C (-4°F to 104°F) |
| Storage | -15°C to 40°C (5°F to 104°F) |
| Normal Operating Temperature | 25 ± 3°C (77 ± 5°F) |
| Cycle Use | Initial Charging Current ≤ 0.78A; Voltage: 14.4V–15.0V @25°C (77°F); Temp Coefficient: -30mV/°C |
| Standby Use | Initial Charging Current ≤ 0.78A; Voltage: 13.5V–13.8V @25°C (77°F); Temp Coefficient: -20mV/°C |
| Temperature Effect on Capacity | |
| 40°C (104°F) | 103% |
| 25°C (77°F) | 100% |
| 0°C (32°F) | 86% |
| Self Discharge | LX Series batteries may be stored up to 6 months at 25°C (77°F); refresh charge required. Higher temperature reduces storage duration. |
General Features
| Feature | Details |
|---|---|
| Design Life | 7 years design life (25°C) |
| Construction | Special exhaust structure and sealing technology — safe and reliable, flexible installation, convenient maintenance |
| Plate Grids | PbCaSn alloy for plate grids — less gassing, less self-discharging |
| Separator | High quality AGM separator — extends cycle life and prevents micro short circuit |
| Raw Material | High purity raw material — ensures low self-discharge rate |
Standards & Certifications
| Category | Details |
|---|---|
| Compliance | IEC 60896 Standard |
| Regulation | EU Battery Directive |
| Manufacturing Certifications | IATF 16949, ISO 9001, ISO 14001 & ISO 45001 certified production facilities |
