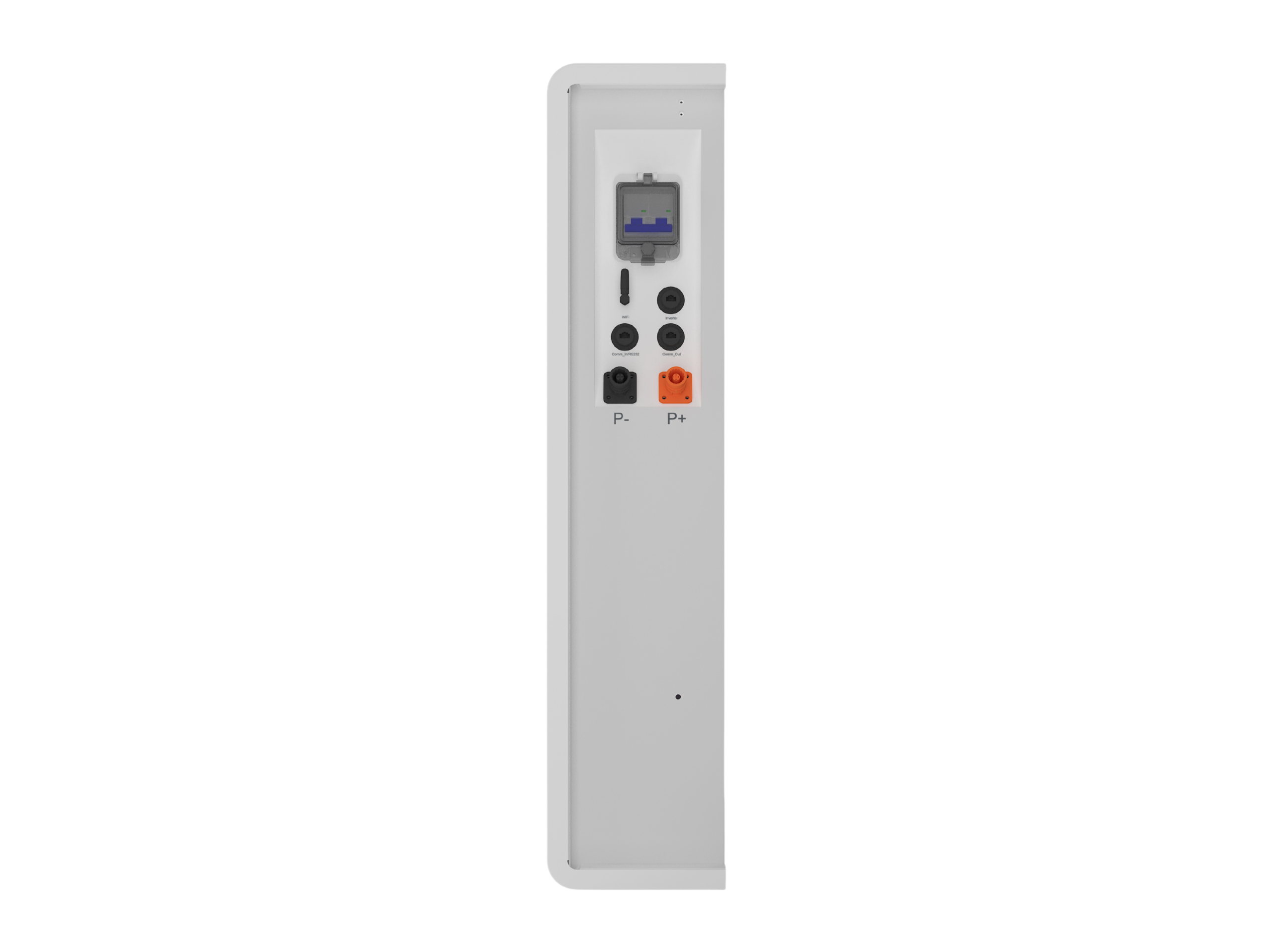

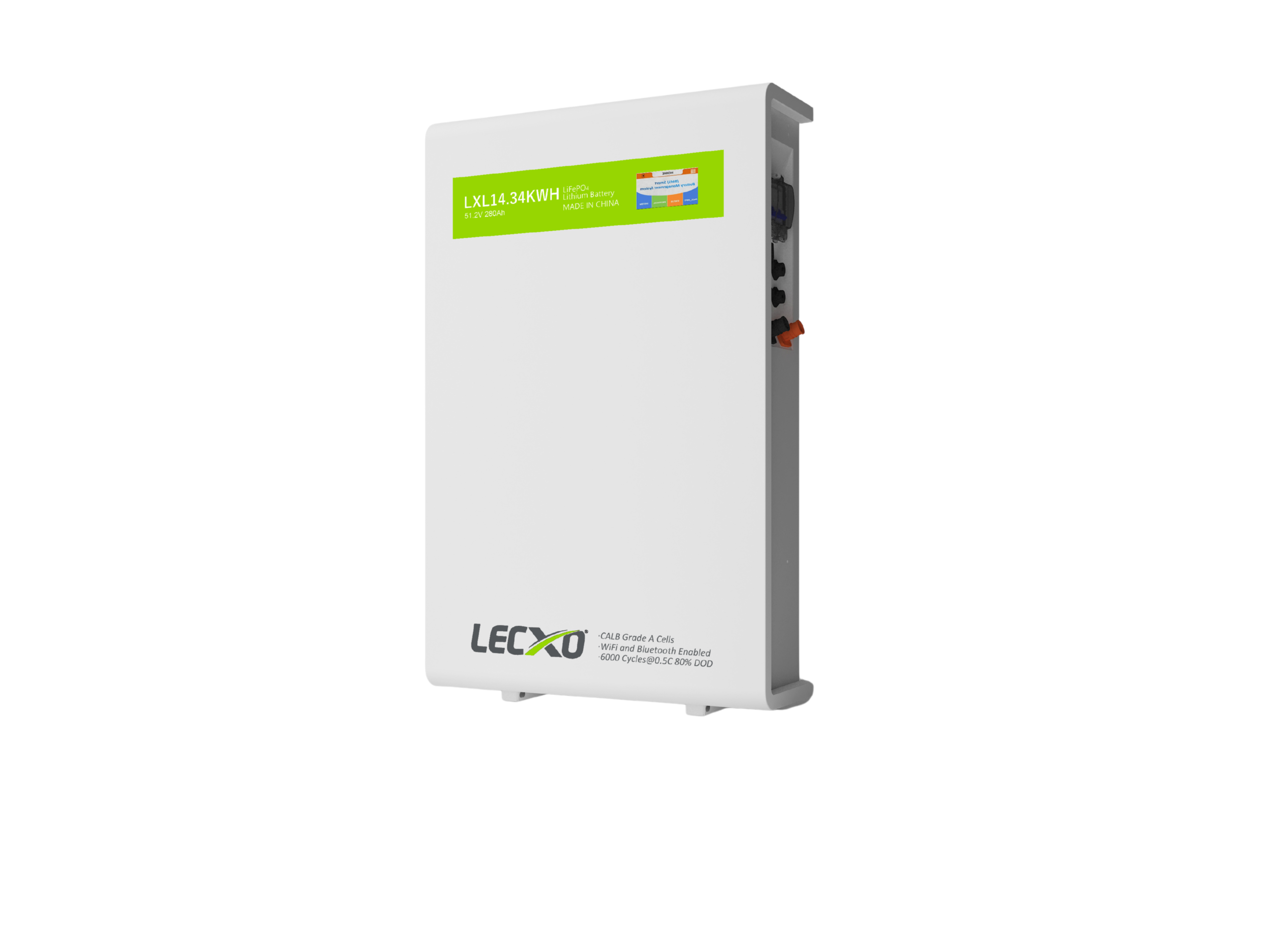

Residential Energy Storage Battery
14.34KWH

Model No: LXL14.34KWH

BluetoothCALB CellTouch ScreenWiFi

Wide compatibility with major inverter brands
Compatible with conventional VRLA powered systems
Built-in BMS for enhanced safety protection
Protection against overcharging and short circuits
Safe LiFePO4 battery chemistry
Easy floor stand installation
Optional HMI support
Supports up to 32 units in parallel
Supports 250A continuous discharge
Wide operating temperature range
CE, UL, and IEC compliant cells

Catalogue

Overview
Specification & Features

Technical Parameters

Specification	Details
Model	LXL14.34KWH
Nominal Voltage	51.2V
Nominal Capacity	280Ah
Total Energy	14336Wh
Operating Voltage Range	43.2 ~ 58.4V
Standard Charge/Discharge Current	150 CH / 250 DCH
Max Charge/Discharge Current	250 CH / 250 DCH
Peak Output Current	300A @3s
Lithium Chemistry	LiFePO4
Cycle Life	6000 @ 0.5C 80% DOD
Design Life	20 Years
Scalability	Max 32P

Mechanical Specifications

Specification	Details
Installation Type	Floor Stand
Dimensions	W567 × D190 × H968 mm
Weight	Approx. 123 Kg
Communication	WiFi, Bluetooth, RS485, CAN
Ingress Rating	IP65
Safety Standards	UN38.3, CE

Environmental Specifications

Specification	Details
Storage Temperature	-20°C ~ 55°C
Charging Temperature	0°C ~ 55°C
Discharge Temperature	-20°C ~ 60°C
Operating Relative Humidity	5% ~ 95%
