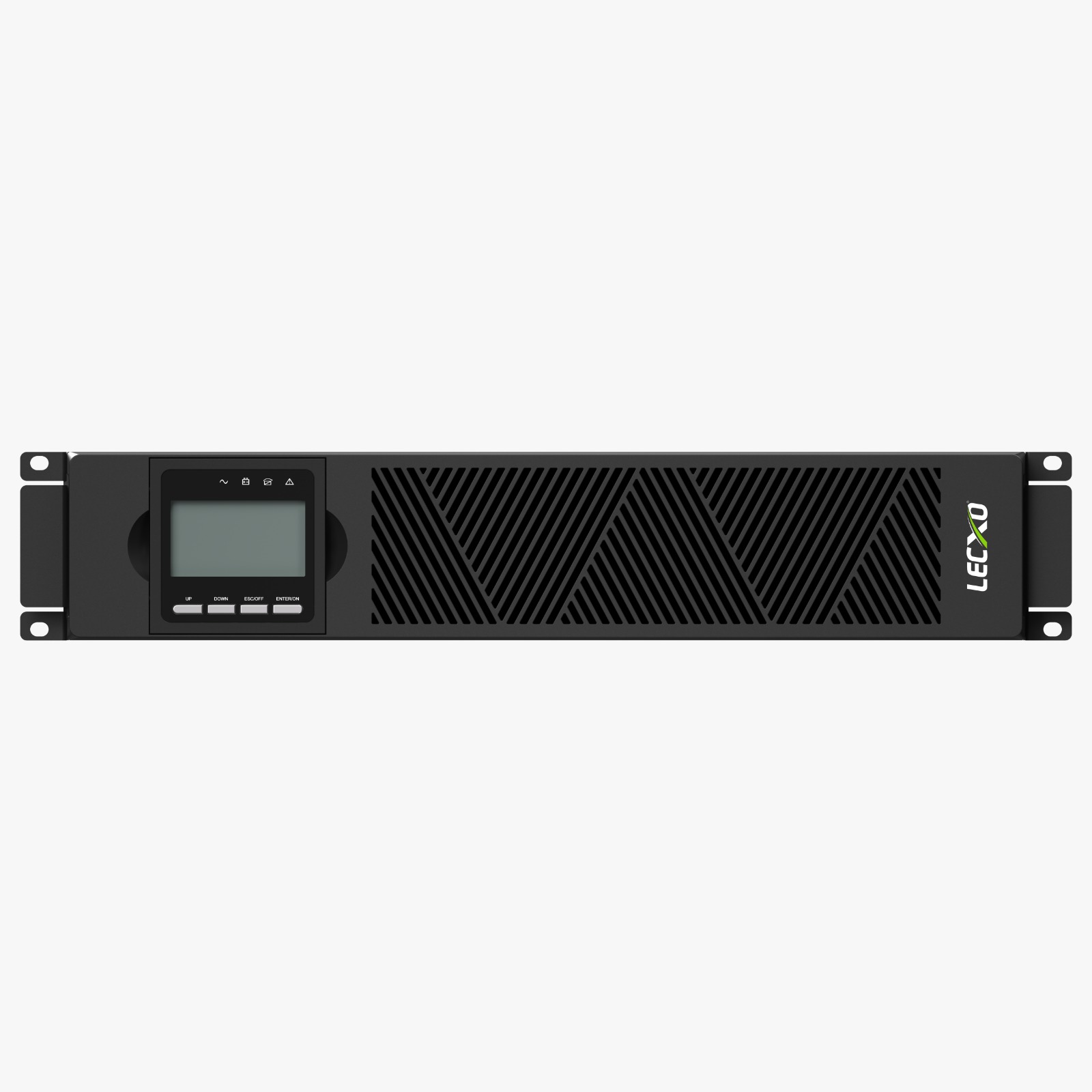

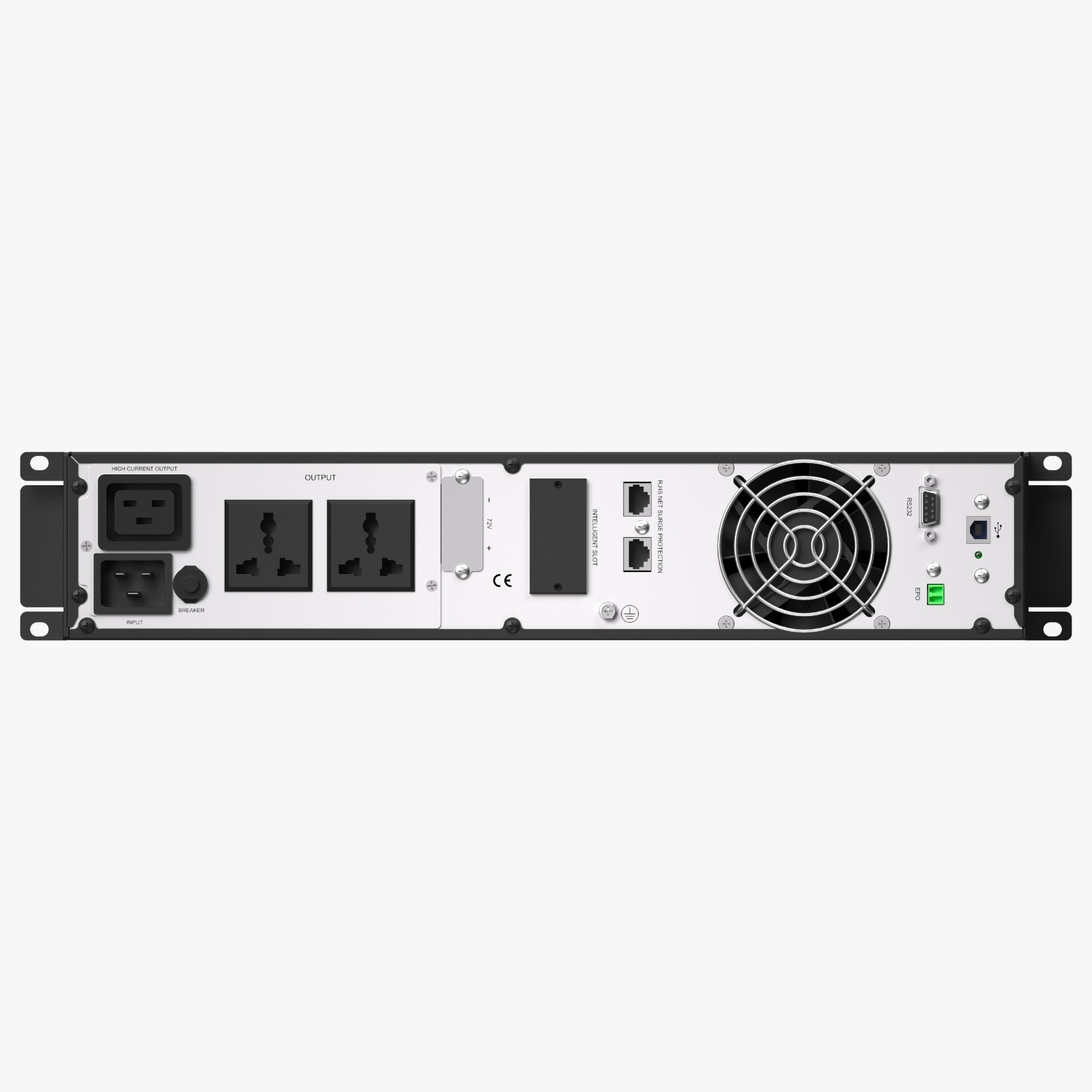

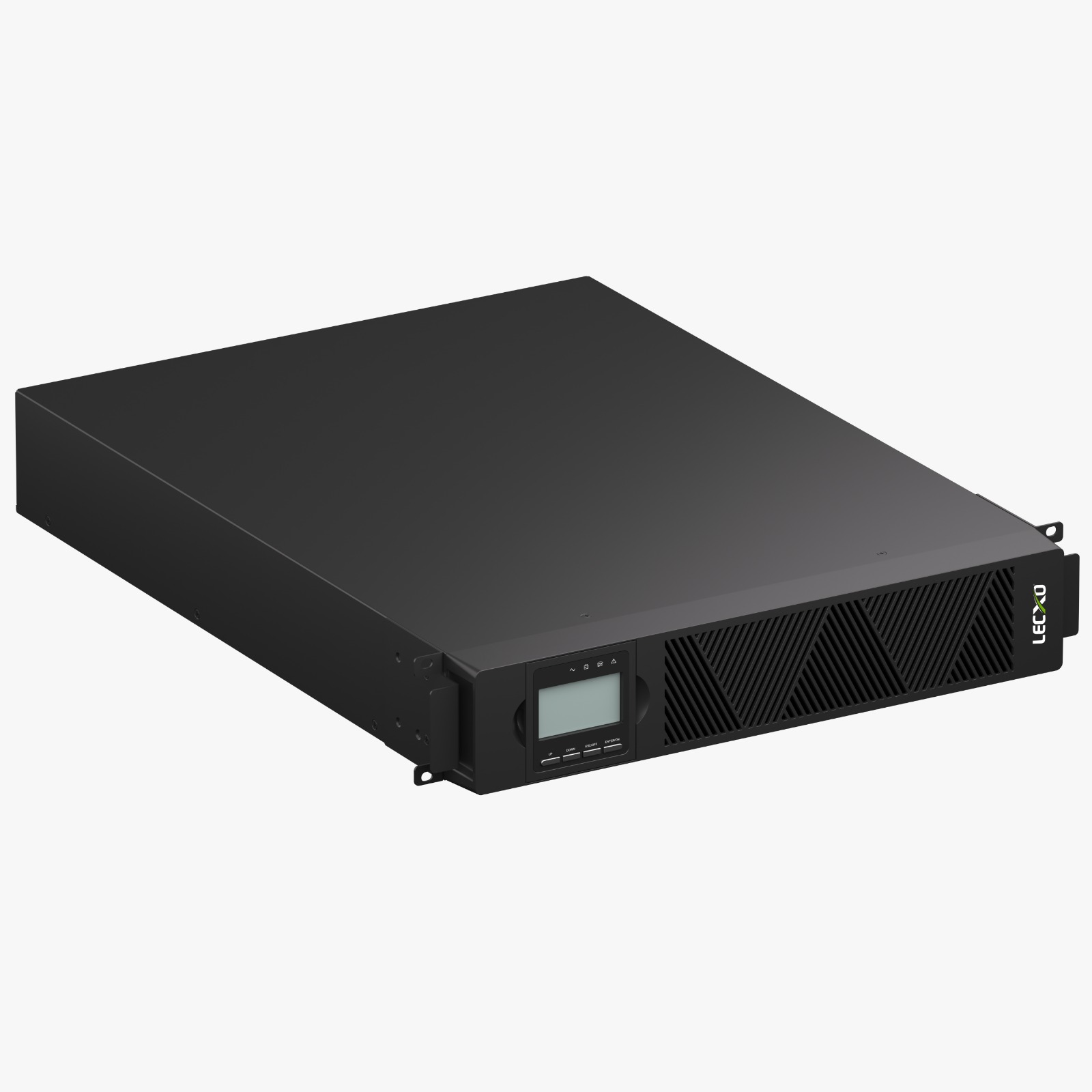

UPS LX3KRACK

Alarm & Security SystemAll PurposeAuto Control SystemCommunication Power SupplyDC Power SupplyElectric Power System (EPS)Emergency Backup Power SupplyUninterruptible Power Supply (UPS)

Catalogue

Overview
Specification & Features

LX3KRACK UPS – Key Specifications

Series / Model: LEXO UPS Series / LX3KRACK | Capacity: 3000 VA / 2700 W

Input: 208–240 V AC | Operating Range 110–300 V | Power Factor ≥ 0.99

Output: 208–240 V AC | Pure Sine Wave | Voltage Regulation ±1% | Power Factor 0.9 | THDv <3% (Linear Load)

Transfer & Efficiency: AC → Battery: 0 ms | Inverter → Bypass: 4 ms | AC Mode 92% | ECO Mode 97%

Battery: VRLA 72 VDC | 6 Batteries | Typical Recharge 4 h | Smart Charging 1 A

Management: LED + LCD Display | Monitors Voltage, Frequency, Load, Battery, Backup Time

Environment: Temp 0–40°C | Humidity 20–95% | Noise <50 dB

Dimensions & Weight: 440 × 600 × 86.5 mm | 26 kg

Compliance: IEC/EN 62040 & 62477 (Safety, EMC, Performance Standards)
