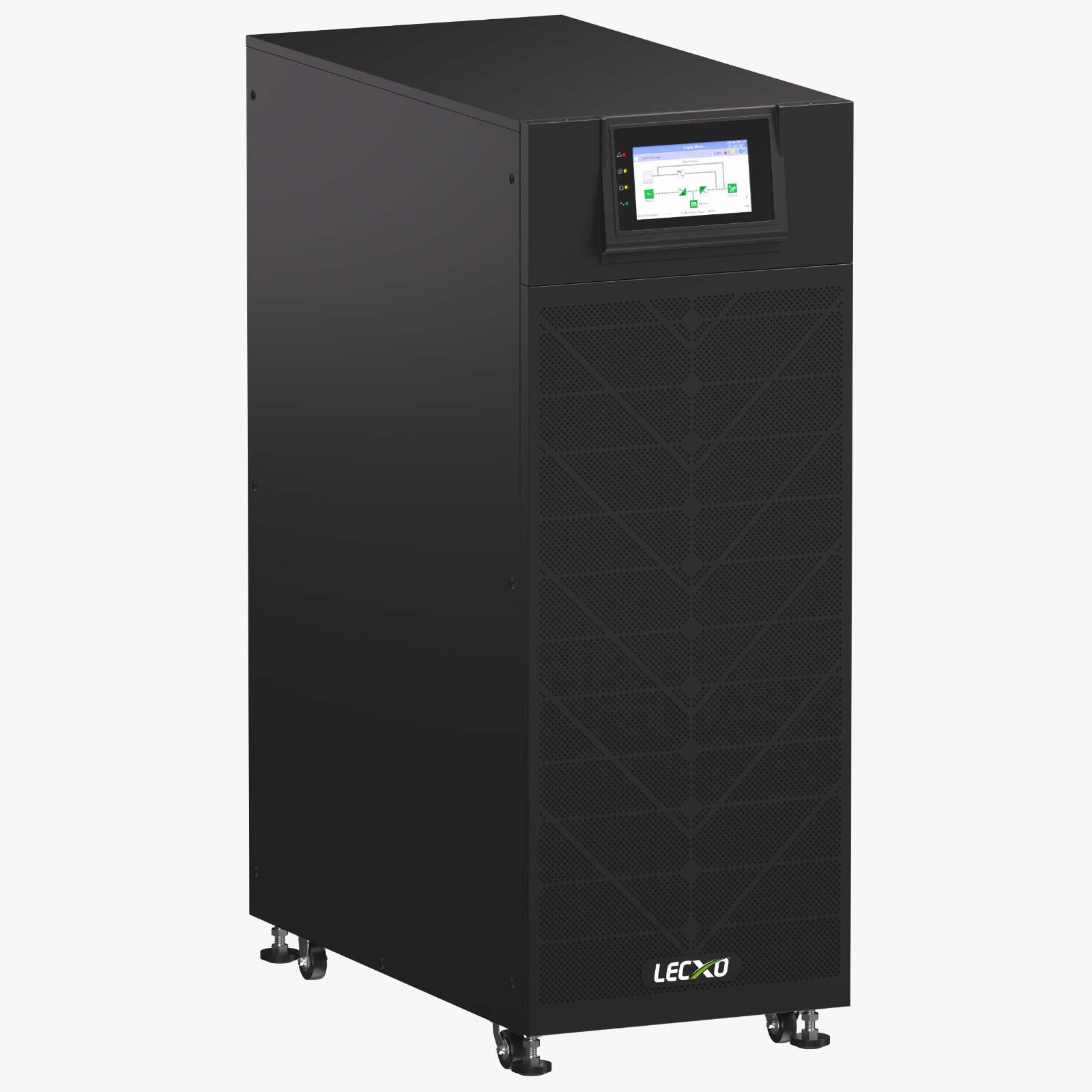

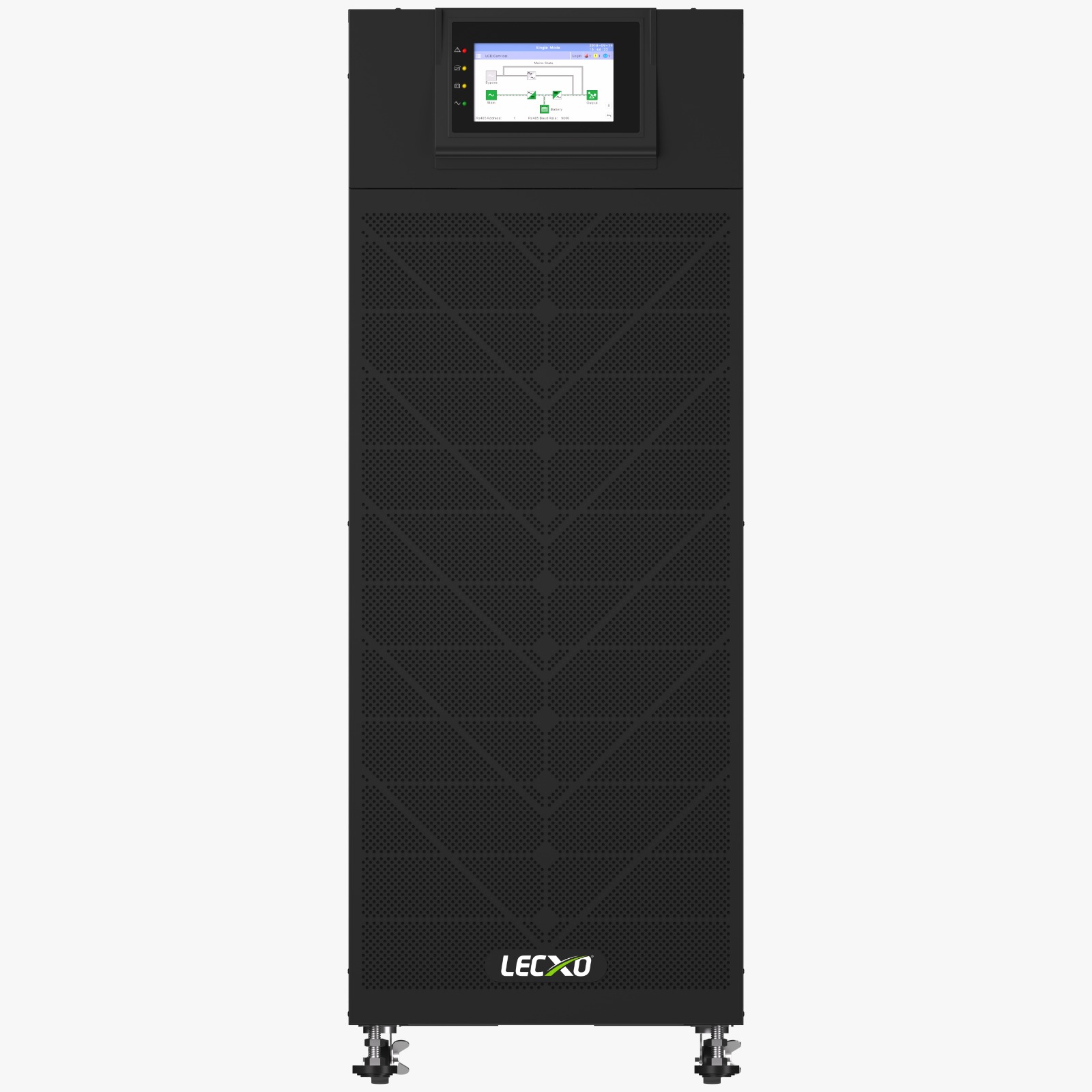

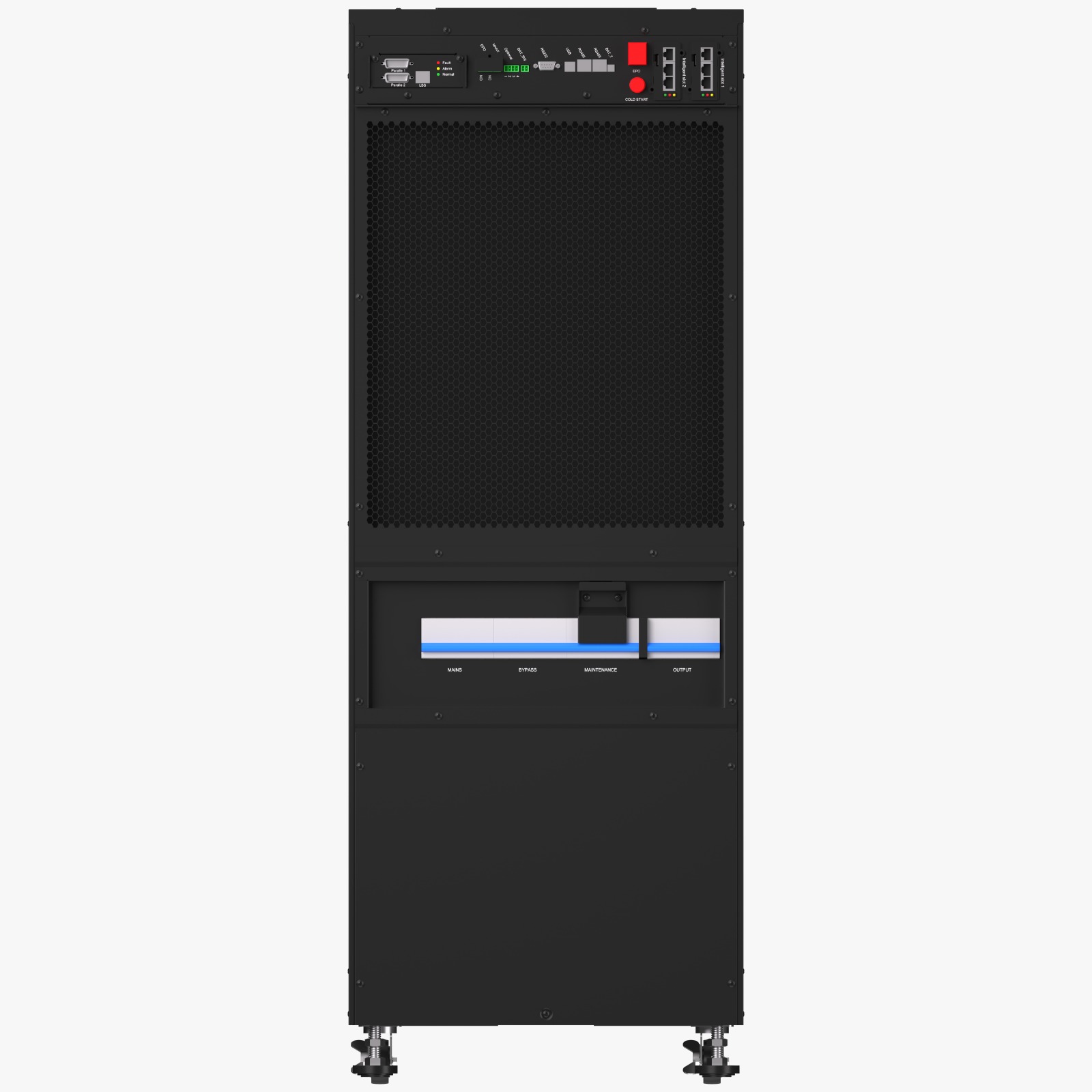

UPS LX SERIES (60K-100K)

LECXO UPS Series (60kVA – 100kVA) – Key Specifications

Models & Capacity:

• LX 60K: 60 kVA / 60 kW

• LX 80K: 80 kVA / 80 kW

• LX 100K: 100 kVA / 100 kW

Input: 380–415 V AC (3 Phase + N + PE) | Operating Range 138–485 V | Power Factor ≥ 0.99 | THDi <3%

Output: 380–415 V AC (3 Phase + N + PE) | Voltage Regulation ±1% | Frequency: Line Mode sync with input, Battery Mode ±0.2% | THDv <2% Linear Load | Crest Factor 3:1

Overload Capability: Inverter Mode ≤150% for short-term, auto shutdown beyond | Bypass Mode supports up to 135% (long-term)

Efficiency: AC Mode up to 95.5% | ECO Mode up to 99%

Battery: VRLA / Lithium-ion | Voltage 360–600 VDC | Max Charging Current 20–40 A

Environment: Operating Temp 0–40°C | Humidity 0–95% | Altitude ≤1000 m | Noise: 58–62 dB

Physical:

• 60kVA: 250 × 828 × 868 mm | 83 kg

• 80kVA: 442 × 850 × 1200 mm | 144 kg

• 100kVA: 442 × 850 × 1200 mm | 147 kg

Compliance: IEC/EN 62040 & 62477 (Safety), IEC/EN 62040-2 (EMC), IEC 61000 series | Performance: IEC 62040-3:2021

Highlights:

• Pure Sine Wave Output, 3 Phase Power

• High Efficiency (ECO Mode 99%)

• Flexible Battery Options (VRLA / Lithium-ion)

• Robust Overload Handling & Auto Shutdown

• Compact Industrial Design with Low Noise
