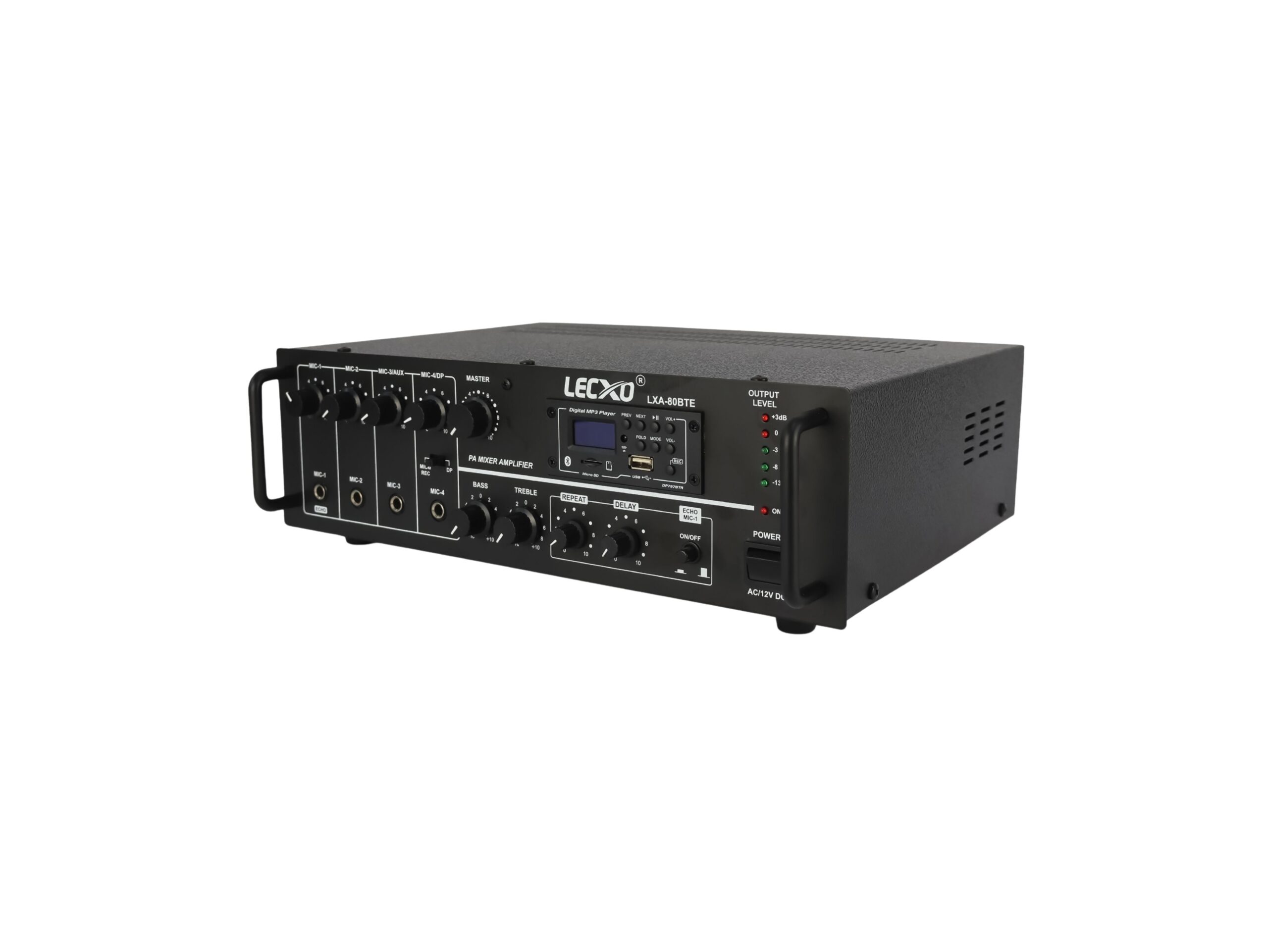

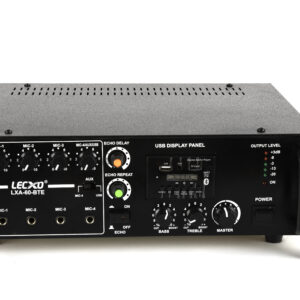

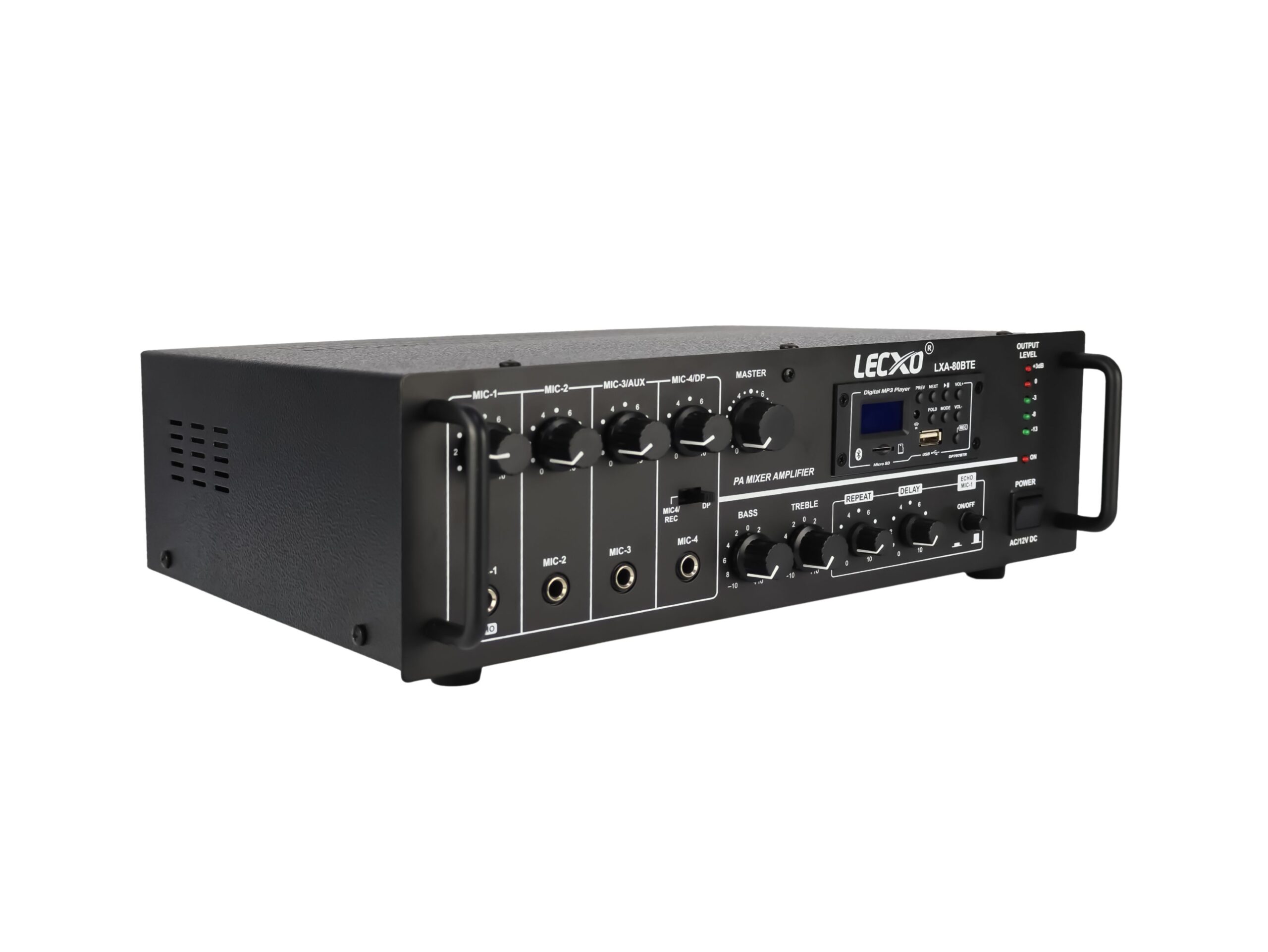

PA AMPLIFIER WITH DIGITAL PLAYER

Model No: LXA-80BTE

Built-in USB MP3 player with Bluetooth, Digital Echo, and remote control for convenient audio playback.

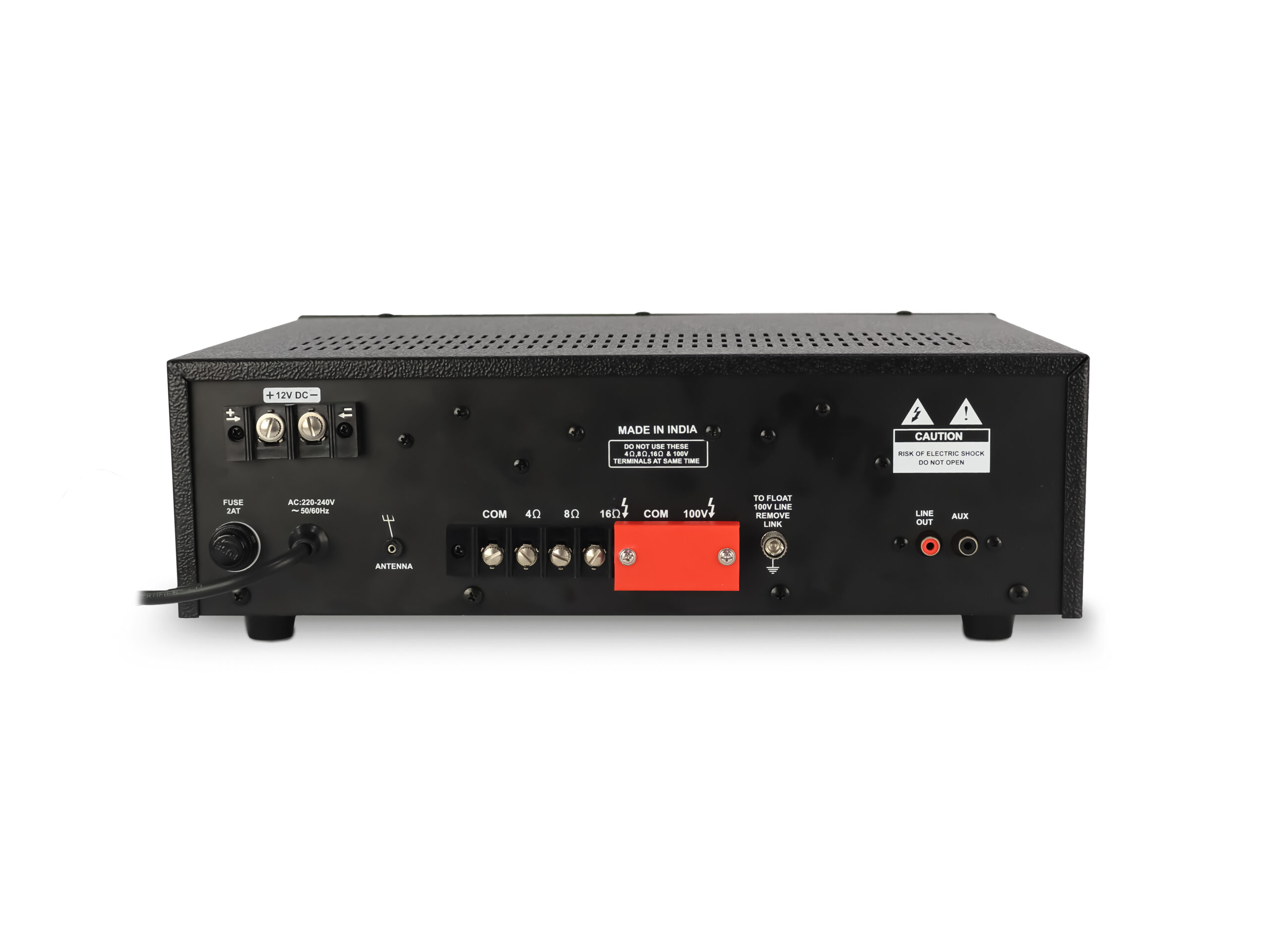

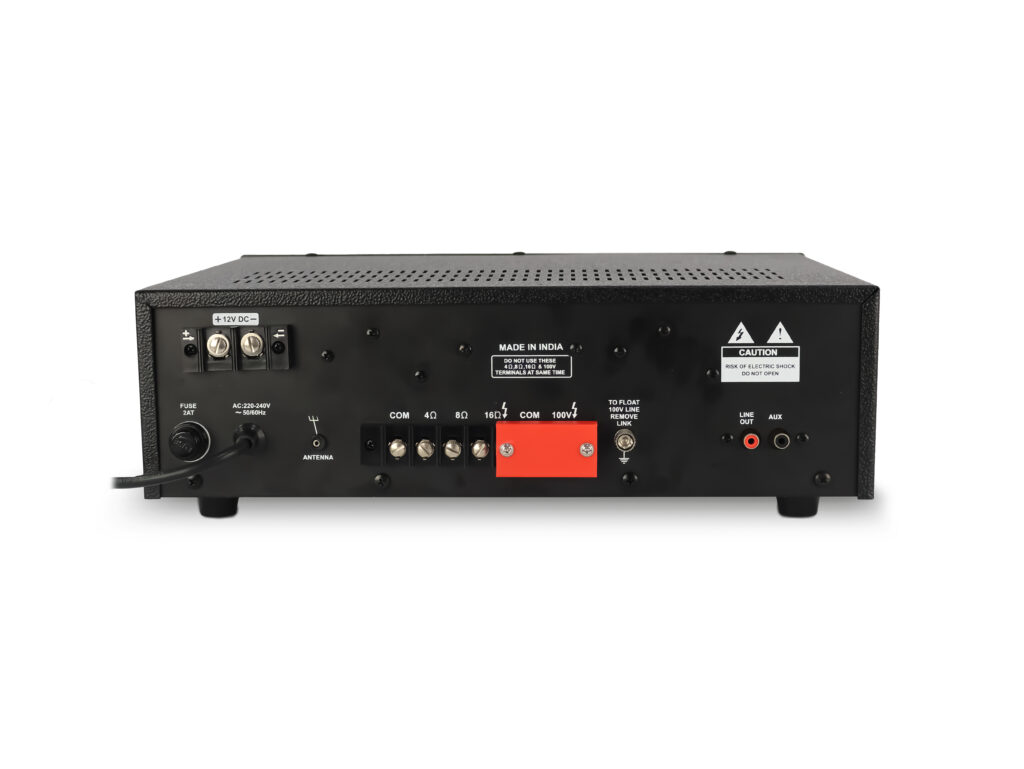

Supports 4 microphone inputs, 1 AUX input, and 100V line or 4/8/16Ω speaker connections.
Features bass and treble controls with a built-in digital effect processor for clear sound.
Includes line input/output for connecting external mixers or booster amplifiers.
Provides overload protection and automatic DC battery backup for uninterrupted operation.

Technical Parameters

Specification	Details
Built-in Media Player	MP3 Player with USB Reader, Bluetooth, Digital Echo and Remote Control
Line Output	For connecting to a Booster Amplifier
Tone Control	Active Bass & Treble Control
Power Backup	Instant transfer to DC Power (Car Battery) if AC power fails
Speaker Compatibility	Supports 4Ω, 8Ω, 16Ω and 100V Line speakers
Microphone & AUX Inputs	4 Microphone Inputs and 1 AUX Input
Output Level Monitoring	5 LED Array for output level monitoring
Digital Effect Processor	Built-in Digital Effect Processor for 1 Microphone Input
Preamplifier Output	Preamplifier and Line Output for connecting to a Booster Amplifier and recording the programme
Line Input	Allows connection from an external mixer or enables the LXA-80BTE to be used as a Booster Power Amplifier
Protection	Resettable circuit breaker with overload and short circuit protection. Automatic transfer to DC Power (Car Battery) during AC power failure.
Speaker/Driver Selector	Box Speaker/Driver Unit selector switch with Bass Boost defeated in Driver Unit mode for safer operation.
