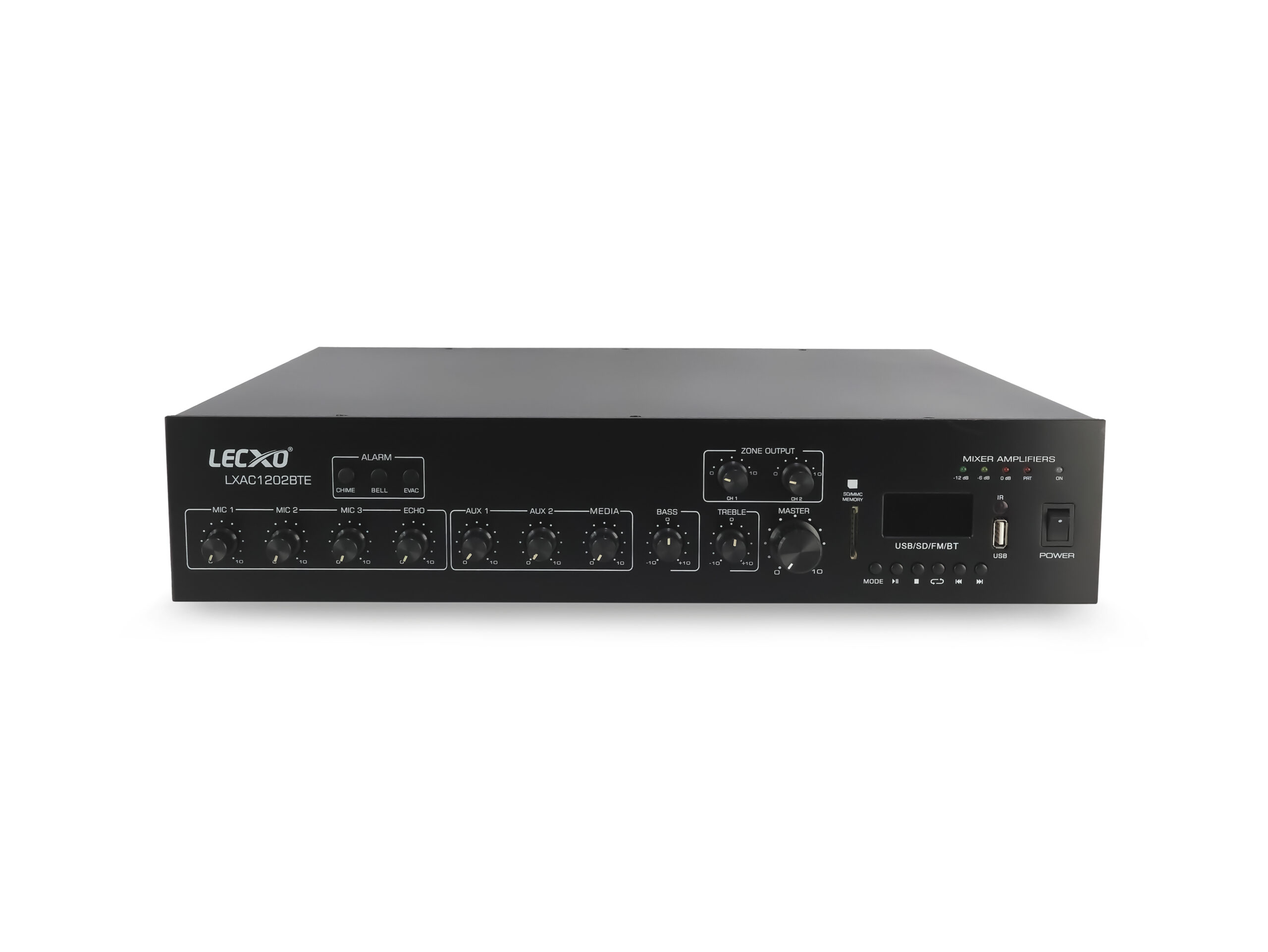

PUBLIC ADDRESS (PA) MIXER AMPLIFIER

Model No: LXAC1202BTE

Professional 120W PA mixer amplifier with a 2U rack-mount design, ideal for commercial and public address audio systems.
Supports Bluetooth, USB, SD card, and FM radio playback, offering flexible audio source options for everyday use.
Features multiple microphone and AUX inputs, VOX priority function, and 100V/70V or 4Ω/8Ω/16Ω speaker outputs.
Includes an LCD display, IR remote control, and independent volume, bass, and treble controls for easy operation.
Built-in overload, short circuit, clip, and high-temperature protection ensures safe and reliable performance.

Technical Parameters

Specification	Details
Product Type	Public Address (PA) Commercial Mixer Power Amplifier, 19″ Rack Mount, 2U Height
Rated Output Power	120W with Heavy Pure Copper Transformer
Media Playback	Built-in MP3 Player via USB, SD Card, FM Tuner, and Bluetooth
Speaker Output	100V / 70V Constant Voltage, 4Ω / 8Ω / 16Ω Speaker Output

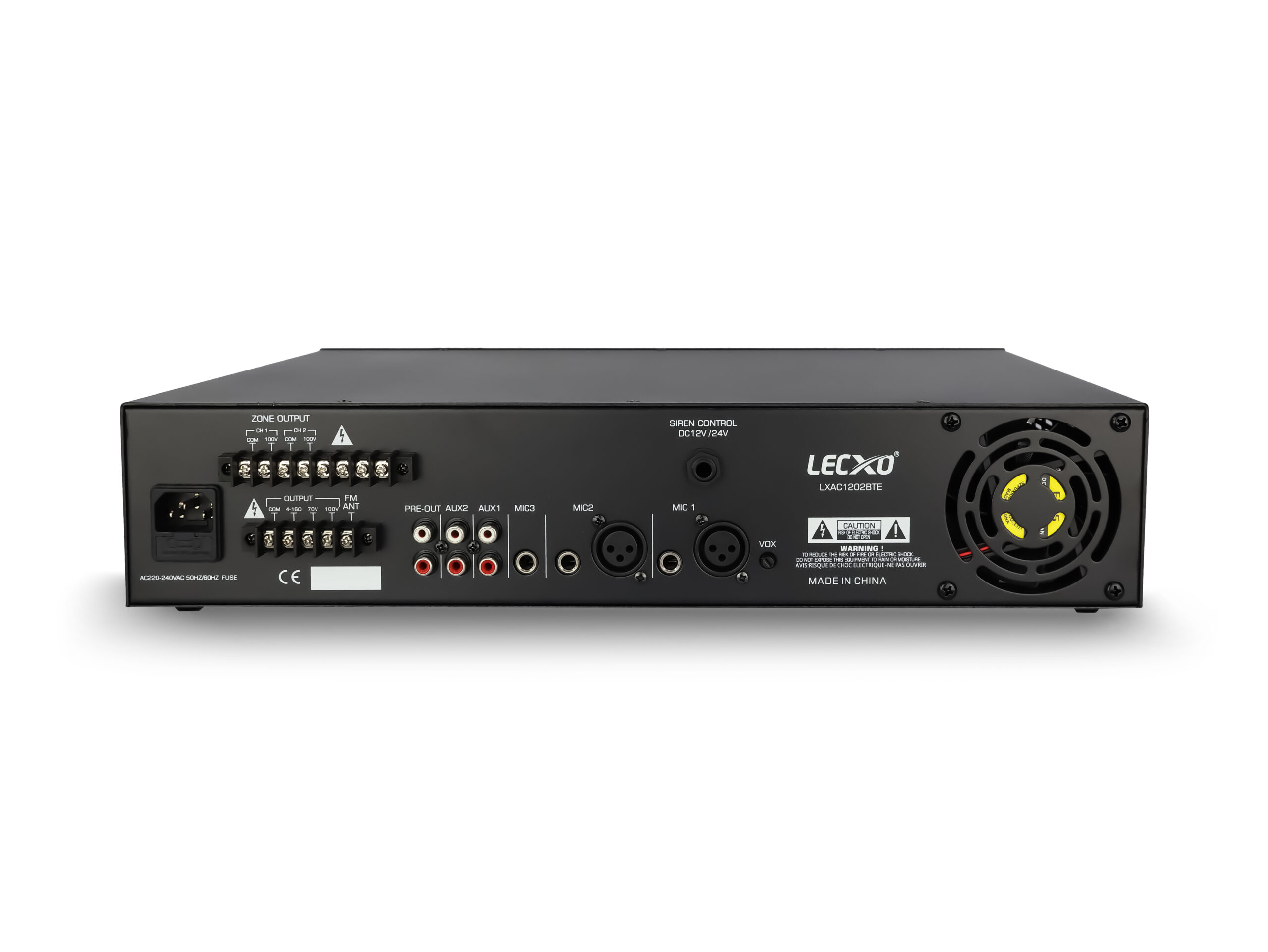

Microphone Input	MIC 1–3 via 6.35mm Jack, MIC 1 & MIC 2 Optional XLR Input (Rear Panel)
VOX Function	MIC 1 Supports VOX with Highest Input Priority
AUX Input / Output	2 × RCA AUX Inputs and 1 × RCA Output
Alarm Input	Siren Control Alarm Input with Highest Priority
Display	LCD Display for Audio Source Status
Remote Control	Infrared Remote Control for MP3, FM Radio, and Bluetooth
Audio Controls	Volume Control for Zone 1–2, MIC 1–3, Echo, AUX 1–2, Media, Bass, Treble, and Master Volume
Status Indicators	LED Indicators for Signal, Protection, and Power
Power Supply	AC 220V–240V Wide Voltage Input
Protection	Overload, Short Circuit, Clip, and High Temperature Protection
