PROFESSIONAL POWER AMPLIFIER

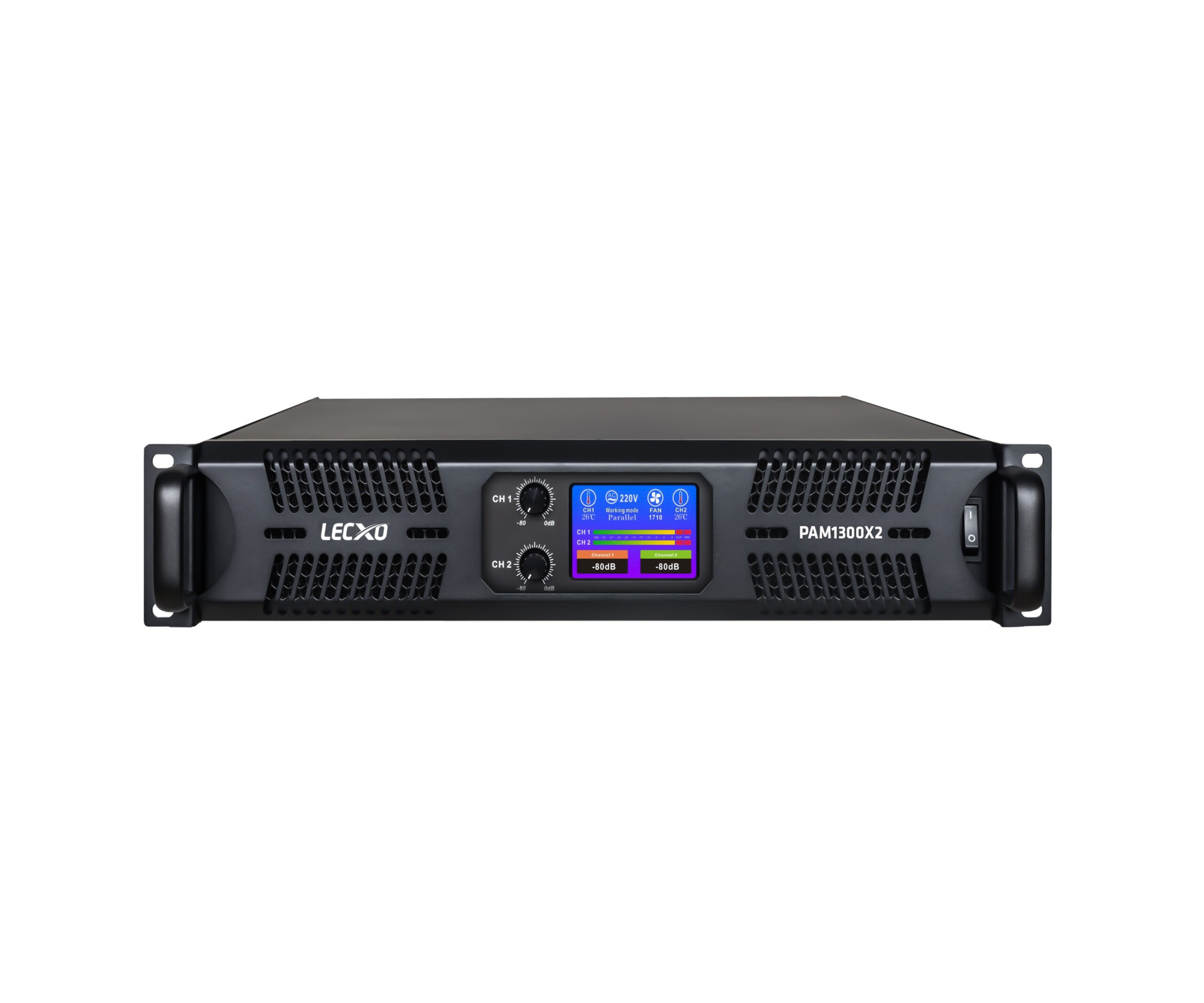

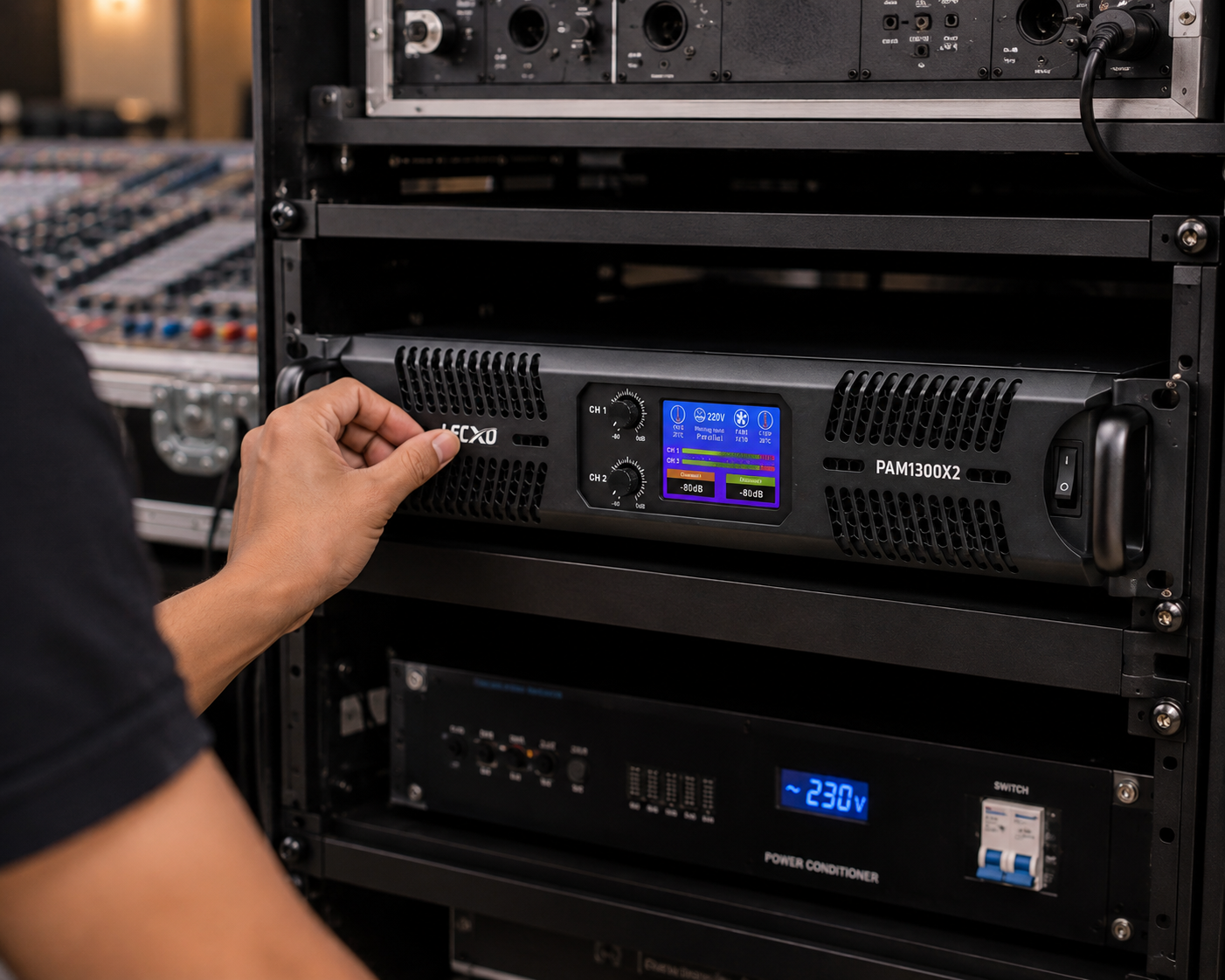

Model No: PAM1300X2
- High-performance Class TD power amplifier designed to deliver powerful, efficient, and reliable audio for professional sound systems.
- Provides up to 2 × 2600W stereo output and 3800W bridged output, making it ideal for concerts, auditoriums, clubs, and large PA installations.
- Wide 20Hz–20kHz frequency response with a 103dB signal-to-noise ratio ensures clear, balanced, and high-quality sound reproduction.
- Built-in protection against short circuits, overheating, overload, DC faults, and supersonic frequencies for safe and dependable operation.
- Features balanced and unbalanced inputs with front-panel status indicators for easy installation, monitoring, and everyday use.
Technical Parameters
| Specification | Details |
|---|---|
| 8Ω Stereo Power | 2 × 1300W |
| 4Ω Stereo Power | 2 × 2300W |
| 2Ω Stereo Power | 2 × 2600W |
| 8Ω Bridged Power | 3800W |
| Output Circuitry | Class TD |
| Frequency Response | 20Hz – 20KHz ±0.3dB @ 1W |
| Signal Noise Ratio (dB) | 103dB |
| THD+N (Rated Power, 40/1KHz) | <0.08% @ 8Ω |
| Damping Coefficient | 500 |
| Input Impedance | 20KΩ Balanced / 10KΩ Unbalanced |
| Input Sensitivity | 1V / 2V |
| Protection | Protection from short circuit, open circuit, overheating, overload, DC, and supersonic frequency. |
| Indicators (Per Channel) | Protection Indicator, Signal Indicator, Work Indicator |
| Power Requirement | AC 220V–240V, 50–60Hz |
| Dimensions | 485 × 520 × 90mm |
| Net Weight | 22.4KG |
| Gross Weight | 25.3KG |
