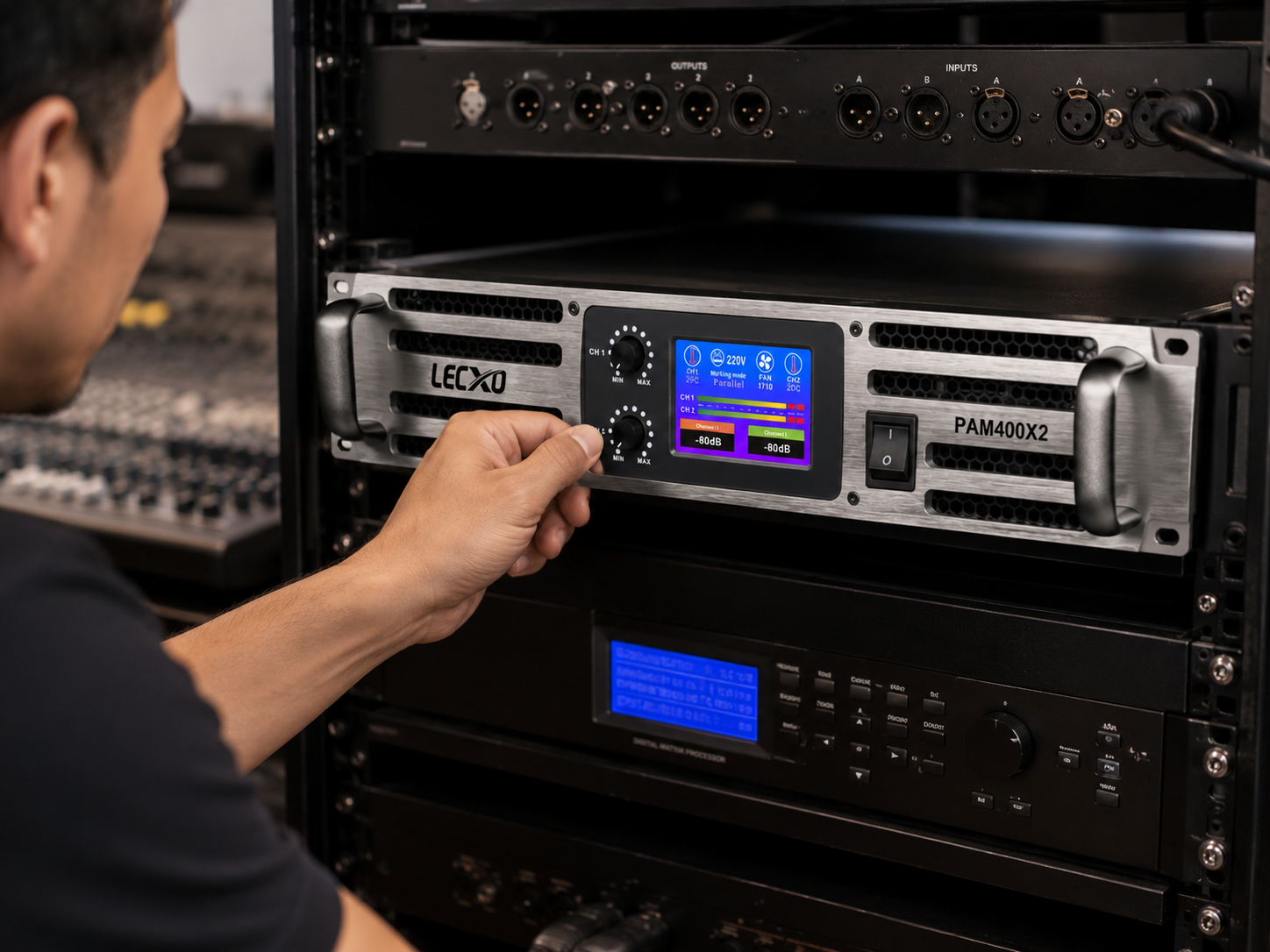

PROFESSIONAL POWER AMPLIFIER

Model No: PAM400X2

Professional Class AB power amplifier designed to deliver clear, stable, and reliable audio performance.
Provides up to 2 × 910W stereo output and 1280W bridged output, ideal for PA systems, auditoriums, and live events.
Wide 10Hz–20kHz frequency response with low distortion ensures accurate and high-quality sound reproduction.
Built-in protection against short circuits, overheating, overload, and DC faults for safe and dependable operation.
Features balanced and unbalanced inputs with front-panel status indicators for easy monitoring and control.

Overview
Specification & Features

Technical Parameters

Specification	Details
8Ω Stereo Power	2 × 400W
4Ω Stereo Power	2 × 650W
2Ω Stereo Power	2 × 910W
8Ω Bridged Power	1280W
Output Circuitry	Class AB
Frequency Response	10Hz – 20KHz ±0.25dB
Signal Noise Ratio (dB)	101dB
THD+N (Rated Power, 40/1KHz)	≤0.03% @ 1KHz
Damping Coefficient	≥500
Input Impedance	20KΩ Balanced / 10KΩ Unbalanced
Input Sensitivity	0.775V / 1.0V / 1.4V
Protection	Protection from short circuit, open circuit, overheating, overload, DC, supersonic frequency, etc.
Indicators (Per Channel)	Protection Indicator, Signal Indicator, Work Indicator
Power Requirement	AC 220V–240V, 50–60Hz
Dimensions	483 × 465 × 90mm
Net Weight	16.5KG
Gross Weight	19KG
