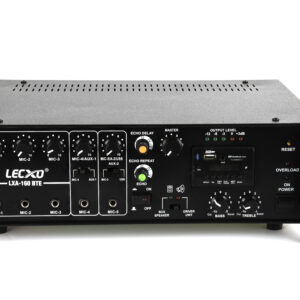

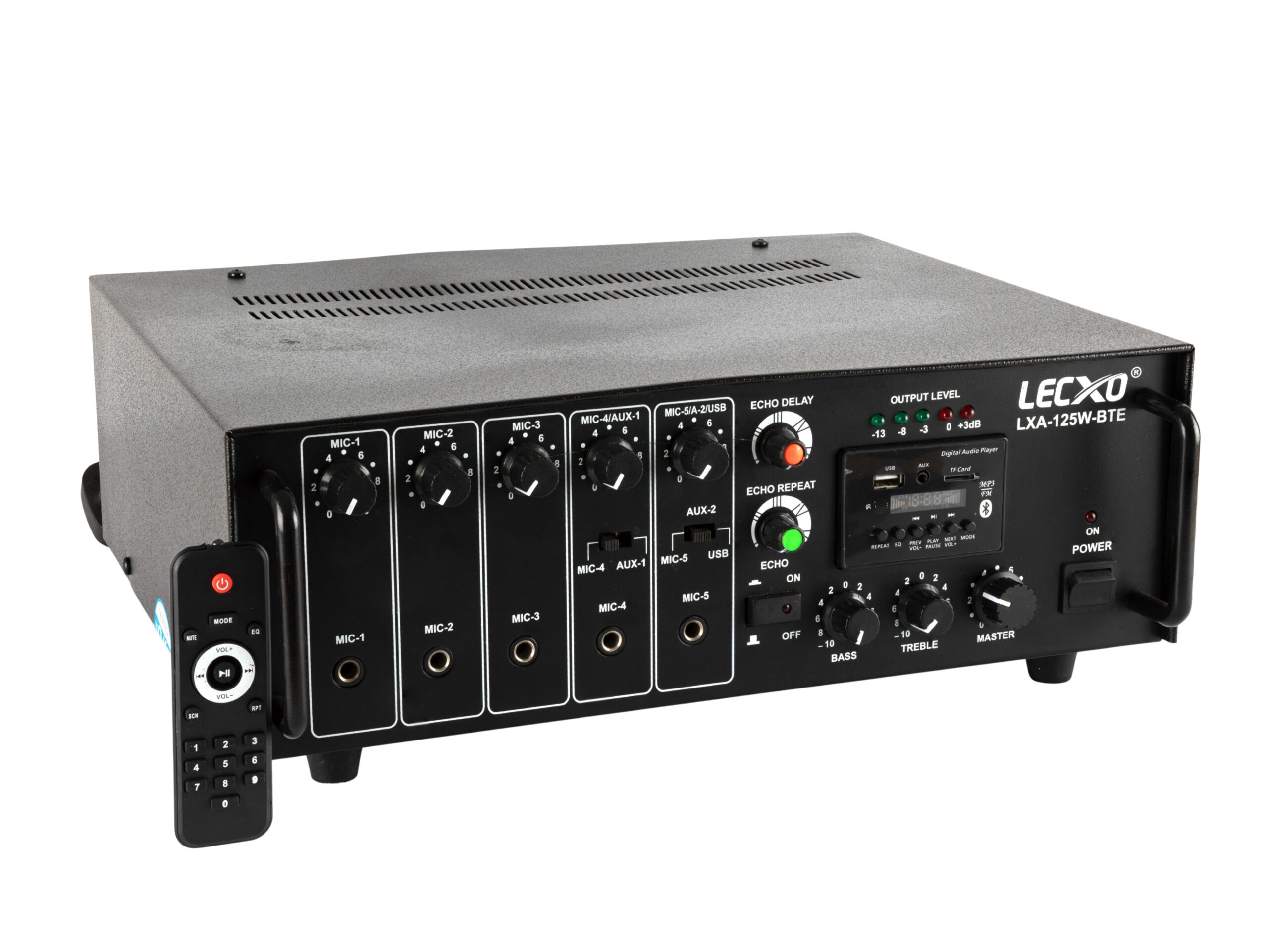

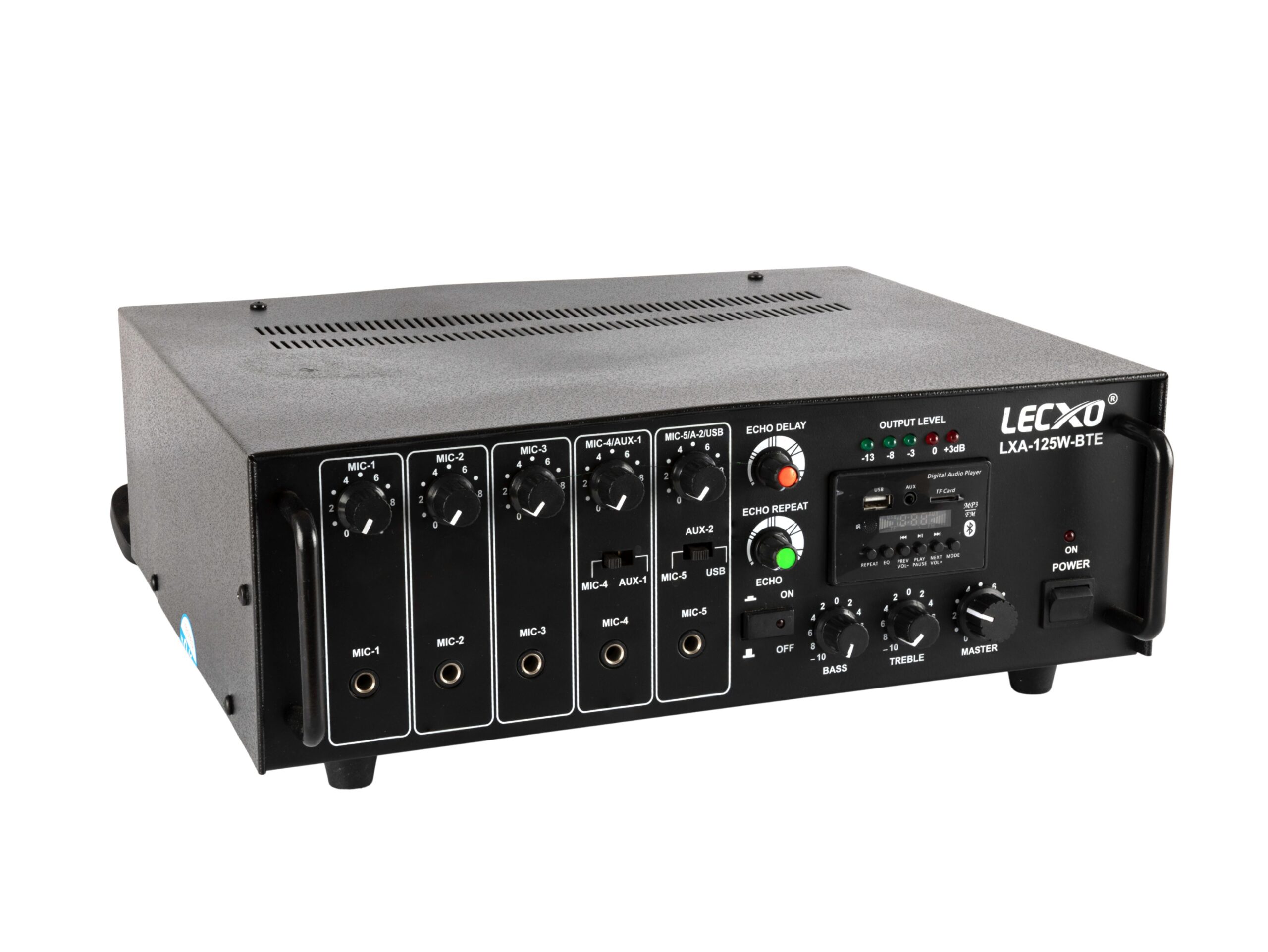

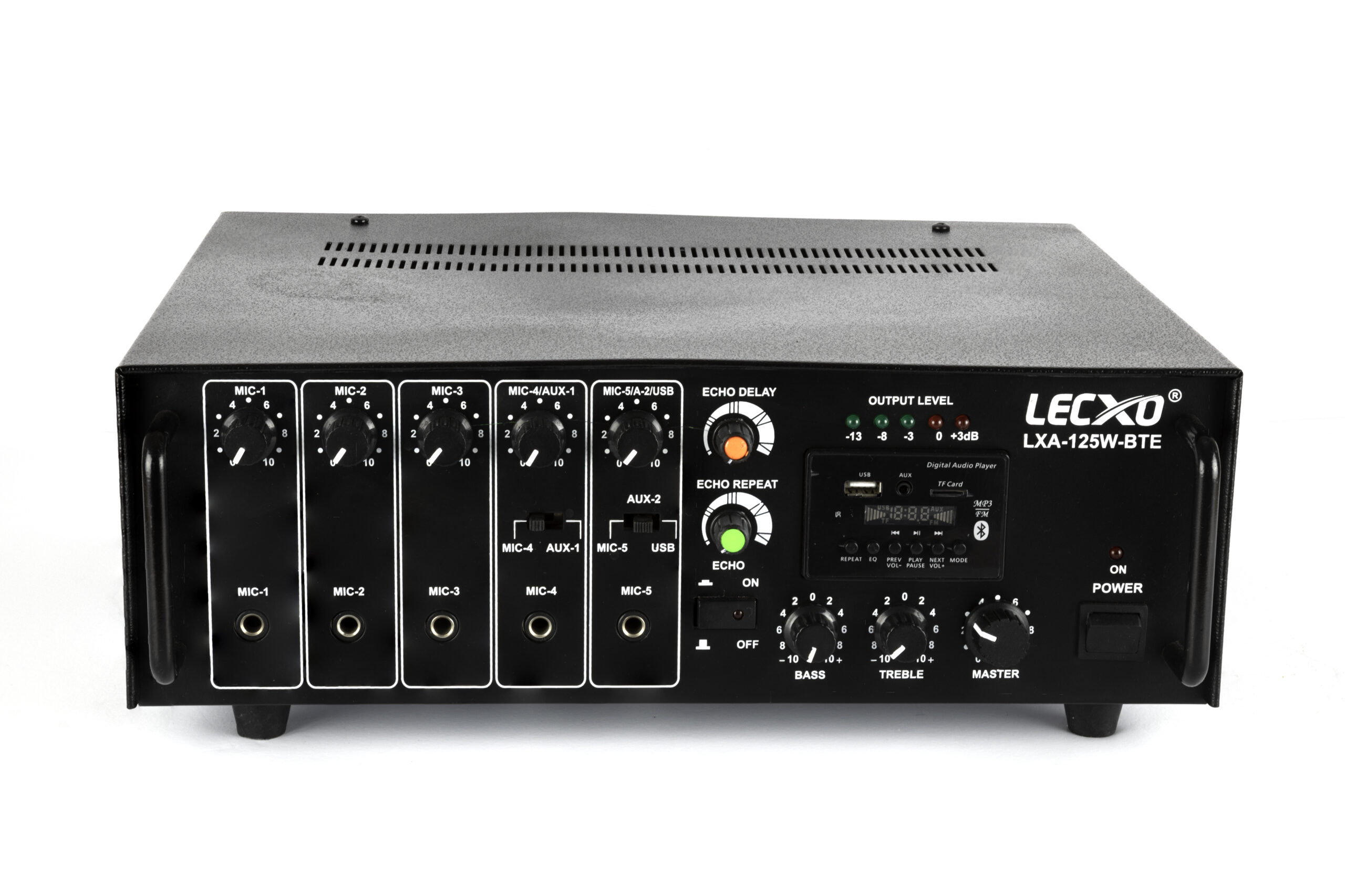

PA AMPLIFIER WITH DIGITAL PLAYER

Model No: LXA-125BTE

Built-in MP3 player with USB, Bluetooth, digital echo, and remote control for convenient audio playback.
Supports 5 microphone inputs, 2 AUX inputs, and multiple speaker outputs including 4Ω, 8Ω, 16Ω, and 100V line.
Features active bass & treble controls, built-in digital effects, and preamplifier output for enhanced sound performance.
Provides automatic DC battery backup during power failures along with overload and short-circuit protection.
Ideal for public address systems, schools, offices, places of worship, and other commercial audio installations.

Technical Parameters

Specification	Details
Built-in Media Player	MP3 Player with USB Reader, Bluetooth, Digital Echo and Remote Control
Line Output	For connecting to a Booster Amplifier
Tone Control	Active Bass & Treble Control
Power Backup	Instant transfer to DC Power (Car Battery) if AC power fails
Speaker Output	Supports 4Ω, 8Ω, 16Ω and 100V Line speakers
Microphone & AUX Inputs	5 Microphone Inputs and 2 AUX Inputs
Output Level Monitoring	5 LED Array for output level monitoring
Digital Effect Processor	Built-in Digital Effect Processor for 1 Microphone Input
Preamplifier Output	Preamplifier and Line Output for connecting to a Booster Amplifier and recording the programme
Line Input	Line Input for connecting an external mixer or using the LXA-125BTE as a Booster Power Amplifier
Protection	Resettable circuit breaker with overload and short circuit protection; instant transfer to DC Power (Car Battery) during AC power failure
Speaker/Driver Selector	Box Speaker/Driver Unit selector switch with Bass Boost defeated in Driver Unit mode for safer operation
